Section 6b: Optimizing an ARC

In the previous example, we introduced a simple one-layer anti-reflection coating (ARC); ARCs are a standard feature of all high-efficiency solar cells. But how do you find out the right thickness for the anti-reflection coating layer(s) (or the right dimensions for a light-trapping grating, or some other structure in your cell)? This is where optimization comes in. Here, we will look at a very simple ‘brute-force’ optimization for a single or double-layer ARC.

import numpy as np
import os
import matplotlib.pyplot as plt

from solcore import material, si
from solcore.solar_cell import Layer
from solcore.light_source import LightSource
from solcore.absorption_calculator import search_db, download_db

from rayflare.transfer_matrix_method import tmm_structure
from rayflare.options import default_options
import seaborn as sns

Setting up

We set some options, as in previous examples, setting the wavelengths and defining the incident spectrum. We are going to do a partially coherent calculation, treating the ARC as a coherent layer and the thick Si layer as incoherent (no thin-film interference).

opts = default_options()

wavelengths = np.linspace(300, 1200, 800)*1e-9

AM15g = LightSource(source_type="standard", version="AM1.5g", output_units="photon_flux_per_m")
spectrum = AM15g.spectrum(wavelengths)[1]
normalised_spectrum = spectrum/np.max(spectrum)

opts.wavelengths = wavelengths
opts.coherent = False
opts.coherency_list = ['c', 'i']

Si = material("Si")()
SiN = material("Si3N4")()
Ag = material("Ag")()
Air = material("Air")()

Single-layer ARC

Here, we will calculate the behaviour of a single-layer SiN anti-reflection coating on Si while changing the ARC thickness between 0 and 200 nm. We will consider two values to optimize: the mean reflectance mean_R, and the reflectance weighted by the photon flux in an AM1.5G spectrum (weighted_R). The reason for considering the second value is that it is more useful to suppress reflection at wavelengths where there are more photons which could be absorbed by the cell (up to the cell’s bandgap).

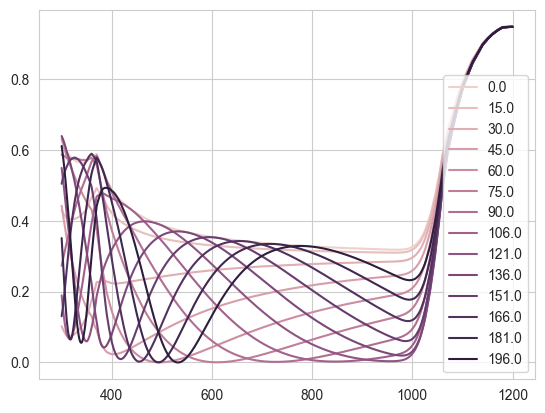

We will loop through the different ARC thicknesses in d_range, build the structure for each case, and then calculate the reflectance. We then save the mean reflected and weighted mean reflectance in the corresponding arrays. We also plot the reflectance for each 15th loop (this is just so the plot does not get too crowded).

d_range = np.linspace(0, 200, 200)

mean_R = np.empty_like(d_range)
weighted_R = np.empty_like(d_range)

cols = sns.cubehelix_palette(np.ceil(len(d_range)/15))

plt.figure()
jcol = 0

for i1, d in enumerate(d_range):

    struct = tmm_structure([Layer(si(d, 'nm'), SiN), Layer(si('300um'), Si)], incidence=Air, transmission=Ag)
    RAT = struct.calculate(opts)

    if i1 % 15 == 0:
        plt.plot(wavelengths*1e9, RAT['R'], label=str(np.round(d, 0)), color=cols[jcol])
        jcol += 1

    mean_R[i1] = np.mean(RAT['R'])
    weighted_R[i1] = np.mean(RAT['R']*normalised_spectrum)

plt.legend()
plt.show()

We now find at which index mean_R and weighted_R are minimised using np.argmin, and use this to print the ARC thickness at which this occurs (rounded to 1 decimal place).

print('Minimum mean reflection occurs at d = ' + str(np.round(d_range[np.argmin(mean_R)], 1)) + ' nm')
print('Minimum weighted reflection occurs at d = ' + str(np.round(d_range[np.argmin(weighted_R)], 1)) + ' nm')

Minimum mean reflection occurs at d = 70.4 nm
Minimum weighted reflection occurs at d = 75.4 nm

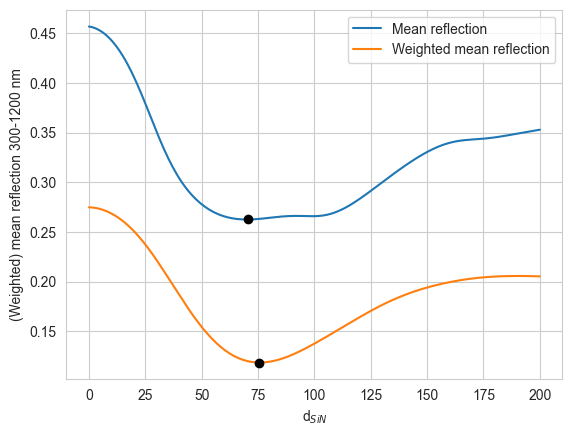

We see that the values of \(d\) for the two different ways of optimizing are very similar, but not exactly the same, as we would expect. The minimum in both cases occurs around 70 nm. We can also plot the variation of the mean and weighted \(R\) with ARC thickness \(d\):

plt.figure()
plt.plot(d_range, mean_R, label='Mean reflection')
plt.plot(d_range[np.argmin(mean_R)], np.min(mean_R), 'ok')
plt.plot(d_range, weighted_R, label='Weighted mean reflection')
plt.plot(d_range[np.argmin(weighted_R)], np.min(weighted_R), 'ok')
plt.xlabel('d$_{SiN}$')
plt.ylabel('(Weighted) mean reflection 300-1200 nm')
plt.legend()
plt.show()

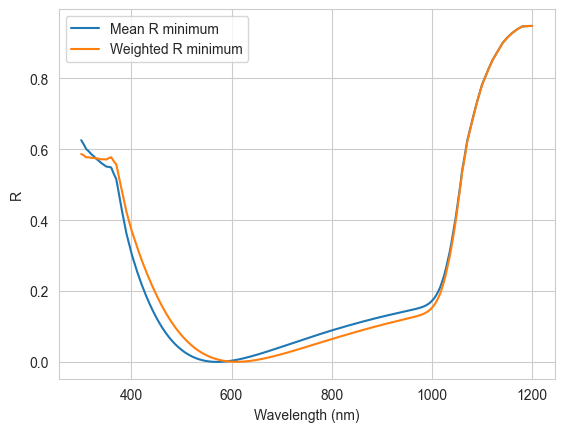

Now, to see what the reflectance looks like for the optimized structure, we make new tmm_structures with the optimal values and calculate and plot the reflectance:

struct = tmm_structure([Layer(si(d_range[np.argmin(mean_R)], 'nm'), SiN), Layer(si('300um'), Si)], incidence=Air, transmission=Ag)
RAT_1 = struct.calculate(opts)

struct = tmm_structure([Layer(si(d_range[np.argmin(weighted_R)], 'nm'), SiN), Layer(si('300um'), Si)], incidence=Air, transmission=Ag)
RAT_2 = struct.calculate(opts)

plt.figure()
plt.plot(wavelengths*1e9, RAT_1['R'], label='Mean R minimum')
plt.plot(wavelengths*1e9, RAT_2['R'], label='Weighted R minimum')
plt.legend()
plt.xlabel("Wavelength (nm)")
plt.ylabel("R")
plt.show()

We see that the two reflectance curves are very similar, as expected because the layer thicknesses are very similar.

Double-layer ARC

We will now consider a similar situation, but for a double-layer MgF\(_2\)/Ta\(_2\)O\(_5\) ARC on GaAs.

Solcore can directly interface with the database from www.refractiveindex.info, which contains around 3000 sets of data for a large number of different materials. Before the first use, it is necessary to download the database. This only needs to be done once, so you can comment this line out after it’s done:

download_db(confirm=True) # only needs to be done once

Database file found at /Users/phoebe/.solcore/nk/nk.db
Making request to https://refractiveindex.info/download/database/rii-database-2021-07-18.zip
Downloaded and extracting...
Wrote /var/folders/60/mjbn28rj1ql_r4w004g_ryt00000gq/T/tmpf1zt2idh/database from https://refractiveindex.info/download/database/rii-database-2021-07-18.zip
LOG: 2746,other,PtAl2,Chen : Bad Material YAML File.
***Wrote SQLite DB on  /Users/phoebe/.solcore/nk/nk.db

We search for materials in the refractiveindex.info database, and use only the part of the solar spectrum relevant for absorption in GaAs (in this case, there is no benefit to reducing absorption above the GaAs bandgap around 900 nm). We will only consider the weighted mean \(R\) in this case. Since all the layers in the structure are relatively thin compared to the wavelengths of light, we do a coherent calculation.

pageid_MgF2 = search_db(os.path.join("MgF2", "Rodriguez-de Marcos"))[0][0]
pageid_Ta2O5 = search_db(os.path.join("Ta2O5", "Rodriguez-de Marcos"))[0][0]

GaAs = material("GaAs")()
MgF2 = material(str(pageid_MgF2), nk_db=True)()
Ta2O5 = material(str(pageid_Ta2O5), nk_db=True)()

MgF2_thickness = np.linspace(50, 100, 20)
Ta2O5_thickness = np.linspace(30, 80, 20)

weighted_R_matrix = np.zeros((len(MgF2_thickness), len(Ta2O5_thickness)))

wavelengths_GaAs = wavelengths[wavelengths < 900e-9]
normalised_spectrum_GaAs = normalised_spectrum[wavelengths < 900e-9]

opts.coherent = True
opts.wavelengths = wavelengths_GaAs

We now have two thicknesses to loop through; otherwise, the procedure is similar to the single-layer ARC example.

for i1, d_MgF2 in enumerate(MgF2_thickness):
    for j1, d_Ta2O5 in enumerate(Ta2O5_thickness):
        struct = tmm_structure([Layer(si(d_MgF2, 'nm'), MgF2), Layer(si(d_Ta2O5, 'nm'), Ta2O5),
                                Layer(si('20um'), GaAs)],
                               incidence=Air, transmission=Ag)
        RAT = struct.calculate(opts)

        weighted_R_matrix[i1, j1] = np.mean(RAT['R'] * normalised_spectrum_GaAs)

# find the row and column indices of the minimum weighted R value
ri, ci = np.unravel_index(weighted_R_matrix.argmin(), weighted_R_matrix.shape)

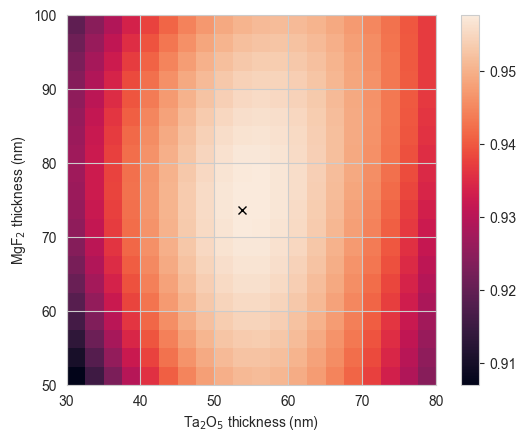

We plot the total absorption (\(1-R\)) in the structure with the optimized ARC, and print the thicknesses of MgF\(_2\) and Ta\(_2\)O\(_5\) at which this occurs:

plt.figure()
plt.imshow(1-weighted_R_matrix, extent=[min(Ta2O5_thickness), max(Ta2O5_thickness),
                                        min(MgF2_thickness), max(MgF2_thickness)],
           origin='lower', aspect='equal')
plt.plot(Ta2O5_thickness[ci], MgF2_thickness[ri], 'xk')
plt.colorbar()
plt.xlabel("Ta$_2$O$_5$ thickness (nm)")
plt.ylabel("MgF$_2$ thickness (nm)")
plt.show()

print("Minimum reflection occurs at MgF2 / Ta2O5 thicknesses of %.1f / %.1f nm "
     % (MgF2_thickness[ri], Ta2O5_thickness[ci]))

Minimum reflection occurs at MgF2 / Ta2O5 thicknesses of 73.7 / 53.7 nm

For these two examples, where we are only trying to optimize one and two parameters respectively across a relatively small range, using a method (TMM) which executes quickly, brute force searching is possible. However, as we introduce more parameters, a wider parameter space, and slower simulation methods, it may no longer be computationally tractable; in that case, using for example differential evolution or other types of numerical optimization may be more appropriate (see this example).

Questions

Apart from varying the thickness of the layers, what else could we change?
How do we know where to start when desining an ARC (layer thickness/material)?
